उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | क्यूब हैंडल के साथ पीपीआर स्टॉप वाल्व | रंग: | ग्रे, हरा, काला, आवश्यकतानुसार |
|---|---|---|---|
| आकार: | 20-32 मिमी | प्रक्रिया: | अंतः क्षेपण ढलाई |
| सामग्री: | पीपीआर+पीतल कार्ट्रिज+क्रोम प्लेटेड | पैकेजिंग विवरण: | मानक निर्यातित पैकिंग या ग्राहक के अनुरोध के रूप में |
| अनुप्रयोग: | गर्म एवं ठंडे पानी की व्यवस्था | प्रसव के समय: | भुगतान के बाद 35 दिनों में भेज दिया गया |
Specification

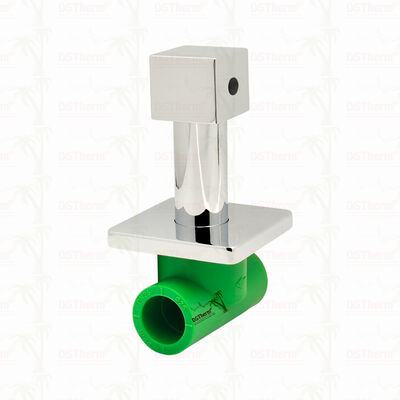

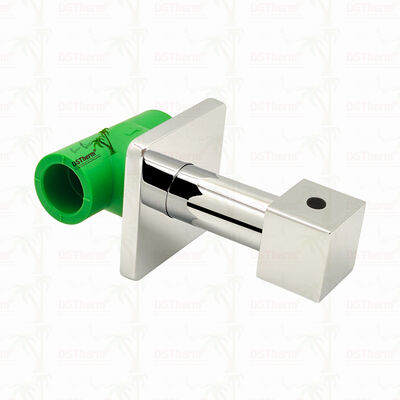

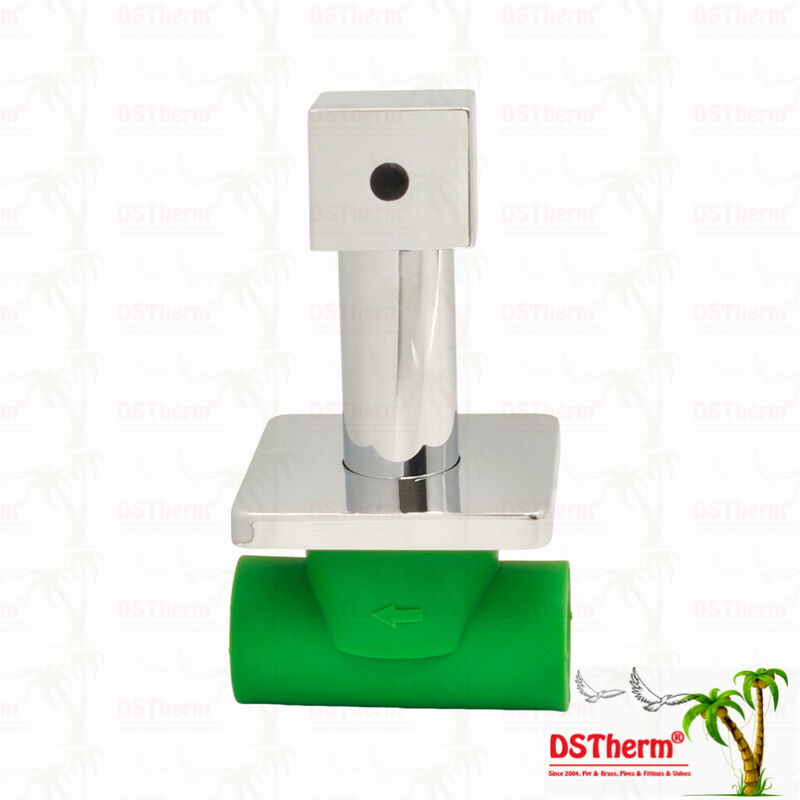

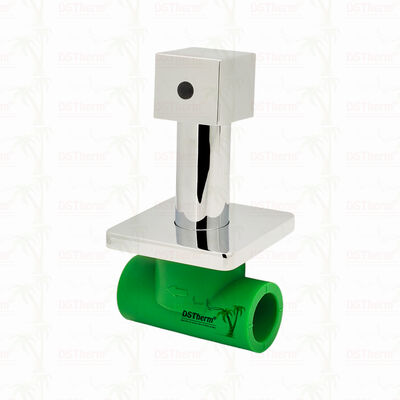

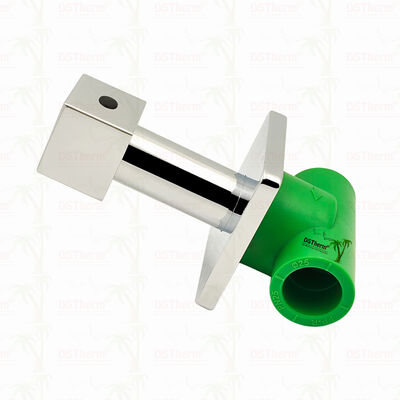

| PPR Stop Valve With Brass Cartridge | Size |
 |
20mm |
| 25mm | |
| 32mm |
We have Stop Valve with specifications ranging from 20mm to 32mm. You can also customize different specifications, color and materials.
Main Components of a Stop Valve
Stop Valve vs. Gate Valve – Comparison
| Stop Valve | Gate Valve | |
| Main Function | Shut-off and throttling / regulating | Primarily for full open or full close, not for throttling |
| Flow Path Shape | Tortuous, S-shaped flow path | Straight, unobstructed flow passage |
| Flow Resistance | High (large pressure drop) | Low (small pressure drop) |
| Installation Direction | Directional (media must enter from below and exit above) | Non-directional (can be installed in either flow direction) |
| Appearance | Longer in length and shorter in height for same nominal size | Shorter in length and taller in height for same nominal size |
| Applicable Size | Mainly used for small bore sizes (e.g., DN ≤ 50 mm) | Commonly used for large bore sizes (e.g., DN ≥ 50 mm) |
Applications
Our advantages
1). Over 20 Years' Experience in production
2). Accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
We will be your better choice!
